SD NAND
  • 特性
  • 規格
  • 應用

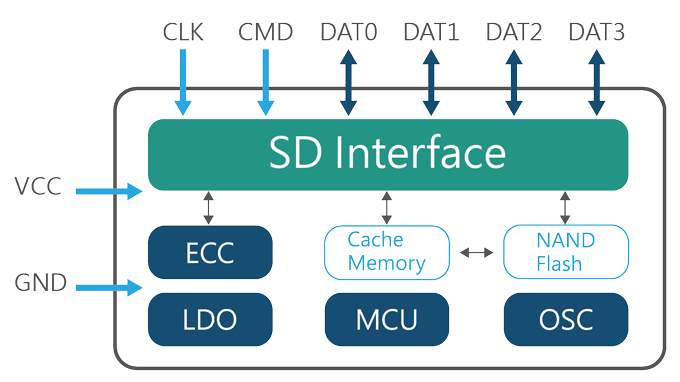

SD NAND Flash is an embedded storage solution for low-power application. The SD NAND Flash is based on an advance 8-pin interface (clock, command, Data*4, power and ground). The SD NAND Flash is fully compliant with SD2.0/SD3.0 interface and operation is similar to SD card.



Model:MYSxGQUA
CapacityAdvance
• 1GB, 2GB, 4GB, 8GB• Advanced dynamic ECC engine to improve reliability
• Support Data Randomizer
SD2.0/3.0 Interface• Support Program Fail Recovery
• Complies to SD specifications version 2.x/3.0x
• Support UHS-I (SDR50, SDR104, DDR50)Power Supply and Consumption
• Support clock frequencies 0~208MHz• Voltage range: 2.7V ~ 3.6V
• Active: 80mA (Typical)
Enhanced access performance• Standby: 160uA (Typical)
• 4KB cache for fast random read
• Cache read and cache program


· 終端產品應用案例
智慧手錶智慧音箱醫療產品
IoT門禁系統
